Raveon's Mission

Provide reliable wireless data products, offering exceptional performance and great value. By being a dedicated wireless partner, we ensure our products and services exceed the needs and expectations of our customers.

RadioManager

Raveon's RadioManager  is a very versitile Windows XP/Vista/7/8 application used to configure Raveon's data radio products, test communications, log data, and assist with developing OEM appliactions. It is compatible with all Raveon radio models, and provides configuration management, as well as programming assistance, diagnostic information, and a helpful "band scope" feature.

RadioManager features:

  • Supports all Raveon Radios  (M3, M5, M7, M8, Atlas, and M7 GX series)
  • Built-in Terminal software for COM and Telnet communications
  • Simplified editing of a radio's configuration
  • Configurations may be stored to a file or retrieved from a file
  • Intelligent parameter verification to help configure technical parameters
  • USe COM ports, Telnet client connections, or Telnet server
  • Able to log data communications to a computer file
  • WMX toolkit for users using WMX protocol.
  • "Auto-Detect Radio" feature searches through possible serial port settings
  • Band Scope feature graphically displays on and off channel signal levels
  • Display handshaking line status in real-time
  • Communication Logger for storing data to log files
  • Bit/Packet Error Rate Test feature

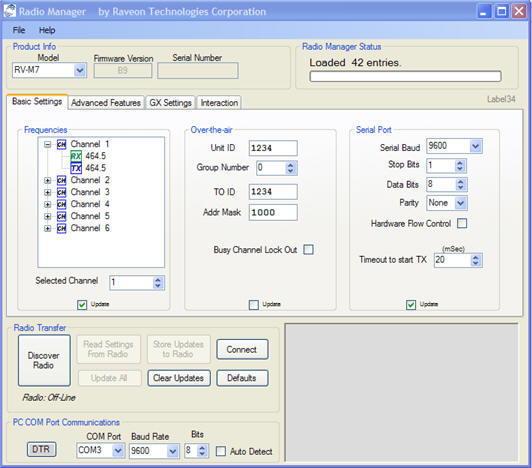

RadioManager is used to configure all of Raveon's data radio products.  The graphical interface makes configuring the radio very easy.  Parameters are grouped together, and only parameters which were edited by the user are uploaded to the radio.  This reduces the risk of unintentional changes to a parameter.

RadioManager's "Band Scope" feature is a handy tool for site analysis.  It displays activity on nearby channels, which can be helpful to the field technician or the site planner.  Adjacent and on-channel interference can also be identified.

image of Radio Manager's "Band Scope"

To Install RadioManager:

On Windows XP machines, make sure the .NET framework from Microsoft is installed. Version 3.5 or higher is required.

  1. Download the RadioManger5setup.zip file, and store it to your hard disk.

  2. Extract the contents of the zip file, and run the  setup.exe program by double-clicking it.

  3. Once RadioManager is installed, select START > All Programs > Raveon > Radio Manager.

  4. Configure the PC COM Port to the COM port you will connect the Radio radio to.

  5. Click "Discover Radio" and Radio Manger will find your radio and display the serial number.

  6. Click "Read Settings" and Radio Manager will read the setting from the radio, and display them.

  7. Edit your settings, and store them back to the radio with the "Store Updates" button.

RadioManager is available for download here:

Current Version of RadioManager: The Current version of RadioManager is verions 5.8. It is available for download here.

Previous Version of RadioManager: The previous verision of RadioManger (3.4) is here: click here and save the file to your hard drive. If you would like to download only the .exe file and copy it over your older version of RadioManger, you may download the RadioManager.exe here.

To learn more about Raveon's WMX protocol used for serial communication see this page.

RadioManager Major Revisions:

Version Major Changes
4.0 Added Tech Table.
4.3 Added support for Atlas SM and Atlas PT radios.
5.0 Added telnet client and server modes. Radio parameters stored in XML formatted files. Terminal window improved.
5.6 Added support for M8T. M8R, M8S OEM radio module
5.7 Added BERT bit/packet error testing
5.8 Added ability to read/set the modem type to streaming or packet mode.
